EXPLORING THE SCIENTIFIC INSTRUMENTS MARKET

The scientific instruments market is at the forefront of innovation, providing essential tools for research, analysis, and experimentation across a multitude of scientific disciplines, markets, and applications. With increasing research and development activities, technological advancements, and a growing demand for precise measurements, the scientific instruments market continues to evolve and expand. This page delves into the dynamic world of scientific instruments, exploring their applications and the factors propelling this market forward.



Global Scientific Instruments Market

A report on SkyQuest states that global scientific instruments market size was valued at USD 41.13 billion in 2022 and is poised to grow from USD 42.94 billion in 2023 to USD 60.60 billion by 2031, growing at a CAGR of 4.4% in the forecast period (2024- 2031).


Some of the insights they share speak about the ever-evolving scientific instruments market as a multifaceted sector encompassing a diverse array of equipment crucial for research, analysis, safety, and experimentation in various scientific fields globally. These tools are instrumental in propelling scientific advancements, fostering groundbreaking revelations, and catalyzing innovation throughout vast industries.


Ranging from microscopes to spectroscopy devices, chromatography systems, and laboratory balances, these instruments find application in disciplines such as—and not limited to—life sciences, geology, environmental science, physics, chemistry, and materials science. Escalating R&D endeavors, technological innovations, and the demand for precision and accuracy in measurements continue to fuel dynamic market expansion.


As mentioned above, pioneering technological breakthroughs—including automation, artificial intelligence, and miniaturization—are redefining the capabilities of scientific instruments, enhancing data acquisition, analysis, and interpretation.


This evolution enhances operational efficiency, reproducibility, and the ability to address complex scientific inquiries across many of the markets and applications used in scientific instrumentation.











Laboratory & Analytical: These markets are integral to the scientific instruments market. They rely on these instruments for a wide range of applications, including research, quality control, regulatory compliance, and product development. The interdependence of these markets drives technological advancements, market growth, and continuous innovation in scientific research and industrial processes.

Test & Measurement: Instruments used in test and measurement provide the capabilities needed for precise and accurate data collection, quality control, technological innovation, regulatory compliance, and cross-disciplinary applications, driving the continuous advancement of scientific research and development.

Explosives Detection Systems: The growing complexity of threats, coupled with the need to protect public safety and comply with regulatory standards, underscores the critical importance of explosive detection in modern security measures. Commonly referred to as explosives trace detectors (ETDs) by agencies such as Homeland Security, the ongoing demand for more accurate, reliable, and rapid explosives detection systems has driven research and innovation in the scientific instruments market.

Pharma & Biotech: These markets meet the demands of burgeoning pharmaceutical and biotechnology industries, calling for advanced instrumentation in drug discovery, genomics, and proteomics.

Environmental Issues: The escalating focus on environmental issues and regulatory requirements further amplifies the necessity for instruments employed in pollution monitoring, water analysis, and quality assurance.

Around the world, well-established research centers and academic institutions play a crucial role in driving market demand, while emerging economies are increasingly becoming major players by investing in scientific research infrastructure. Collaborations among academia, industry, and government entities further fuel market expansion, creating a fertile ground for innovation and advancements in scientific endeavors.



PROMINENT MARKETS

Three prominent applications markets that require heating elements to perform their functions are:

• Laboratory & Analytical
• Test & Measurement
• Explosives Detection

Easy Resource Reading

This resource page offers a comprehensive discussion of the use of heaters in scientific instruments equipment. You can view the discussion in its entirety or click on any of the topics below to be taken directly to that portion of the discussion.





HOW ARE HEATERS USED IN LABORATORY & ANALYTICAL APPLICATIONS?

Heaters play a crucial role in laboratory and analytical markets by providing precise temperature control for various processes and experiments. Their applications in these settings include the following provided below.


Incubation and Cultivation

Incubators: Heaters maintain constant temperatures for the growth of microbial cultures, cell cultures, and other biological samples.
Water Baths: Used for precise temperature control in experiments requiring consistent, gentle heating.


Sample Preparation

Drying Ovens: Essential for removing moisture from samples before analysis.
Desiccators: Used in conjunction with heaters to keep samples dry and free from humidity.
Hot Plates: Provide a controlled heat source for preparing samples, including dissolving solids and heating liquids.


Analytical Instrumentation

Gas Chromatographs: Require heaters to maintain the necessary temperature for the column, detector, and injector to ensure accurate and reproducible results.
Spectrophotometers: Use heaters to stabilize temperature-sensitive components, ensuring consistent readings.
Mass Spectrometers: Employ heaters to maintain optimal conditions for ionization sources and vacuum systems.


Chemical Reactions

Reactor Vessels: Use heaters to provide the necessary temperature conditions for chemical synthesis and reactions.
Mantles and Heating Jackets: Provide uniform heat distribution for round-bottom flasks and other laboratory glassware.


Thermal Analysis

Differential Scanning Calorimeters (DSC): Use precise heating and cooling to study material properties, such as melting points, crystallization, and phase transitions.
Thermogravimetric Analyzers (TGA): Measure changes in weight in relation to temperature, requiring accurate heating control.



Environmental Testing

Stability Chambers: Equipped with heaters to simulate different environmental conditions, including temperature and humidity, for testing product stability and shelf life.
Temperature Cycling: Used in materials testing to assess the durability and performance of samples under fluctuating temperature conditions.


Biotechnology and Pharmaceutical Applications

PCR Thermal Cyclers: Employ heaters to precisely control the temperature cycles needed for DNA amplification.

Lyophilizers: Use heating elements during the final stages of freeze-drying to ensure complete removal of solvents from biological samples.


In all these applications, heaters are integral to maintaining the accuracy, reliability, and reproducibility of laboratory and analytical procedures, making them indispensable tools in scientific research and industrial applications.


HOW HEATERS ARE USED IN EXPLOSIVES DETECTION APPLICATIONS

Heaters play a critical role in the explosives detection market and applications by ensuring optimal performance, reliability, and accuracy of detection instruments. These heating mechanisms are utilized across various applications to assist in precisely identifying and analyzing explosive materials. Below we discuss some vital functions of heaters when used in this field.


Vapor Sampling and Analysis

Preconcentration of Explosive Vapors: Heaters are used to increase the temperature of air samples, facilitating the release and concentration of explosive vapors for more accurate detection.
Thermal Desorption Units: These devices use heat to desorb explosive molecules from collection media, making them available for analysis by detectors like mass spectrometers or ion mobility spectrometers.


Gas Chromatography (GC)

Column Heating: Heaters maintain the precise temperature of the chromatographic column, essential for separating explosive compounds based on their volatilities.
Injector and Detector Heaters: These components require accurate temperature control to ensure the integrity of the sample injection and the sensitivity of the detection.


Ion Mobility Spectrometry (IMS)

Drift Tube Heating: Heaters maintain the drift tube at a constant temperature to stabilize the mobility of ionized explosive molecules, ensuring accurate and reproducible detection.
Sample Introduction: Heating the sample inlet aids in volatilizing explosives, making them easier to ionize and detect.



Infrared (IR) Spectroscopy

Sample Preparation: Heaters are used to dry or heat samples to enhance the detection of explosive residues through IR spectroscopy.
Optical Components: Maintaining the temperature of optical components can improve the sensitivity and accuracy of IR-based explosive detection systems.


Trace Detection Systems

Surface Heating: Portable explosive detectors often use heaters to warm surfaces where explosive residues may be present, aiding in the collection of vapor or particle samples.
Heated Samplers: These are used to collect and vaporize explosive particles from surfaces or environments, enhancing the efficiency of detection.


Field-Deployable Detection Units

Environmental Control: In portable and field-deployable explosive detectors, heaters ensure that the internal components remain within operational temperature ranges, regardless of external environmental conditions. This is crucial for maintaining accuracy and reliability in diverse climates.


Explosives Detection Dogs

Training Aids: Heaters can be used in training aids to simulate the scent profiles of explosives by gently warming scent-containing materials, helping to train detection dogs more effectively.


Maintenance and Calibration

System Calibration: Heaters are used during the calibration of explosives detection instruments to ensure they operate correctly at different temperatures, enhancing their accuracy and reliability.

Moisture Control: In environments where humidity can affect detection equipment, heaters are used to reduce moisture and prevent condensation within the devices.


Safety and Efficiency Enhancements

Preventing Sensor Fouling: Heaters can help to prevent the fouling of sensors by keeping them free of moisture and other contaminants, ensuring consistent performance.
Operational Readiness: By maintaining optimal temperatures, heaters ensure that explosives detection systems are always ready for immediate use, reducing downtime and improving response times.


Heaters are integral to the explosive detection market, enhancing the performance, reliability, and accuracy of detection instruments across various applications. Their use ensures that explosives trace detectors and other systems can effectively identify and analyze explosive materials, contributing to safety and security in various environments.









HOW HEATERS ARE USED IN TEST & MEASUREMENT EQUIPMENT

Heating elements are used in test and measurement equipment for a variety of functions that serve to improve the accuracy and reliability of test results. Commonly, heaters are employed to control temperature, enable thermal cycling, facilitate material testing, simulate environmental conditions, and maintain stability and calibration.



Temperature Stabilization: Some test and measurement equipment require a stable temperature environment for accurate measurements. Heaters are used to control the temperature and ensure that the equipment operates within a specific temperature range. This is particularly important for instruments, such as environmental chambers, thermal analyzers, and certain types of sensors.

Thermal Cycling: In certain testing scenarios, it is necessary to subject the equipment or the test samples to repeated heating and cooling cycles. Heaters are used to raise the temperature to a desired level, and then the cooling mechanism is employed to rapidly lower the temperature. This thermal cycling process helps simulate real-world conditions and assess the performance of the equipment or the tested materials.

Material Testing: Some materials exhibit different characteristics or behaviors at varying temperatures. Heaters can be used to heat up samples or components being tested to specific temperatures, allowing researchers or engineers to study their thermal properties, thermal expansion, or other relevant parameters. This is common in applications, such as thermal conductivity measurements, coefficient of thermal expansion analysis, or temperature-dependent electrical characterization.

Environmental Simulations: Certain test and measurement equipment aim to simulate specific environmental conditions. Heaters play a crucial role in replicating these conditions by generating the necessary heat. For example, in environmental chambers used for testing electronic devices or components, heaters are used to raise the temperature to simulate extreme hot conditions or accelerated aging tests.

Stability and Calibration: Some instruments require precise calibration, and heaters are used to ensure stability and accuracy. By maintaining a constant temperature, heaters help stabilize the internal components of the equipment, minimizing any drift or variations caused by environmental changes. This is particularly important for high-precision instruments, such as spectrometers, oscilloscopes, or voltage references.

Certainly, with all these considerations, a reliable heating element is critical to any thermal system, as their usage depends on the specific requirements and objectives of the testing or measurement process.



THE USE OF RESISTIVE HEATING ELEMENTS IN THE TEST & MEASUREMENT MARKET

Resistive heating elements, such as heating coils or heating cartridges, are widely used in test and measurement
equipment. They consist of a resistive wire or coil that generates heat when an electric current passes through
it. Resistive heating elements offer high heating power and are commonly used in applications where rapid
temperature changes or high-temperature environments are required. Below we explore some factors that
contribute to their popularity in this market. Keep in mind as you read about these heaters, that they are also
used for specific purposes in laboratory and analytical and in explosives detection applications.

Precision and Control: Resistive heating elements offer precise control over temperature, making them suitable for applications that require accurate and stable temperature conditions. This is crucial in test and measurement equipment where precise conditions are often necessary for accurate results.

Reliability: These heating elements are known for their reliability and durability. They have a simple design, which reduces the likelihood of mechanical failures or malfunctions, ensuring a stable and continuous heat source.

Linear Relationship Between Power and Temperature: The relationship between the power supplied to a resistive heating element and the resulting temperature is linear. This makes it easier to control and calibrate the temperature in test and measurement applications.

Wide Range of Temperatures: Resistive heating elements can operate over a wide range of temperatures, from low to high. This versatility makes them suitable for various test and measurement applications where different temperature ranges are required.

Fast Response Time: n applications where rapid changes in temperature are needed for testing purposes, resistive heating elements can achieve high temperatures relatively quickly, providing the required fast response time.

Compact Size: Resistive heating elements can be designed to be compact and space-efficient. This is important in test and measurement equipment where minimizing the size of components is often a design requirement.

Ease of Integration: Being relatively simple to integrate into different types of equipment, the straightforward design of resistive heating elements makes them compatible with various control systems, facilitating ease of integration into test setups.

Cost-Effectiveness: Compared to some other heating technologies, resistive heating elements are often more cost-effective to manufacture and implement. This cost-effectiveness makes them a practical choice for test and measurement equipment, especially in applications with budget constraints.

Compatibility with Various Materials: Resistive heating elements can be designed to work with different materials, making them versatile for a wide range of testing applications. This adaptability contributes to their widespread use in diverse industries.

Safety: They are generally considered safe and reliable. Resistive heating elements don’t involve open flames or combustion processes, reducing the risk of accidents in testing environments.

With all these advantages, note that the choice of heating element depends on the specific requirements of the application. The selection of the heater type depends on factors, such as the desired temperature range, response time, uniformity of heating, power requirements, and the specific needs of the test or measurement application. In some cases, other types of heating elements, such as inductive or radiant heaters, may be more suitable based on specific performance criteria. Different heaters may be combined within a single piece of equipment to provide multiple heating zones or to cater to different temperature requirements.



7 TYPES OF HEATERS COMMONLY USED IN TEST & MEASUREMENT
APPLICATIONS

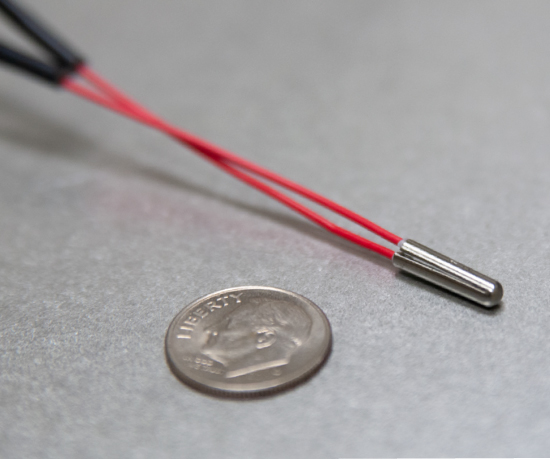

Micro-Cartridge Heaters

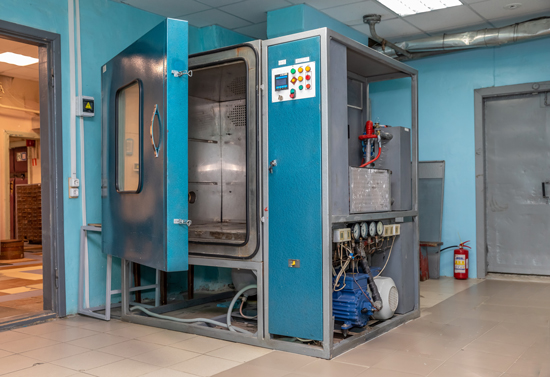

Temperature cycling/environmental chambers are used to simulate a wide range of temperature and humidity conditions for testing the performance and durability of materials, components, and products. These chambers can replicate real-world environments to assess how materials and products will respond to temperature variations, moisture levels, and other environmental factors.


Micro-cartridge heaters are essential components in these environmental chambers, providing precise and uniform heating to create and maintain the desired temperature profiles. The heaters ensure accurate control of temperature gradients within the chamber, allowing for reliable and repeatable testing conditions crucial for research, development, and quality assurance processes.

Micro-cartridge heaters are small, cylindrical heating elements commonly used in test and measurement equipment for applications that require localized heating in a compact space, such as material testing devices. They are designed to provide precise and controlled heating in various industries, including test and measurement. Continue reading to learn about key features and characteristics of micro-cartridge heaters.



Size and Construction: Micro-cartridge heaters are characterized by their small size and cylindrical shape. They typically have a diameter ranging from 1 mm to 10 mm and a length of a few centimeters. The heating element is often made of a high-resistance wire such as nichrome, which is insulated within a metal sheath, usually stainless steel or Incoloy. The sheath protects the heating element and enhances its durability. Click here to learn more about Backer Hotwatt’s extensive line of custom-manufactured and stock micro-cartridge heaters, including low-watt density, high-watt density Superwatt heaters, and the revolutionary SunRod.

High Temperature Capability: Micro-cartridge heaters are designed to withstand high operating temperatures, making them suitable for applications that require elevated temperatures. They can typically reach temperatures up to 1000°C (1832°F) or even higher, depending on the specific design and materials used.

Fast Heat-up and Response Time: Micro-cartridge heaters offer rapid heat-up and response times due to their compact size and efficient design. This makes them ideal for applications that require quick temperature changes or precise control over heating cycles.

Uniform Heating: These heaters provide uniform heat distribution along their length. The heating element is evenly distributed within the sheath, ensuring consistent heating across the entire surface area of the cartridge. This uniform heating that micro-cartridge heaters provide is crucial in applications that demand precise temperature control and even heat distribution.

Precise Temperature Control: They can be controlled with high precision, using temperature controllers or feedback mechanisms. This allows for accurate temperature regulation within the test and measurement equipment. The small size and fast response time of micro-cartridge heaters contribute to the overall precision and efficiency of the temperature control system.

Versatile Mounting Options: Micro-cartridge heaters are designed with various mounting options to accommodate different installation requirements. They can be inserted into drilled holes, clamped onto surfaces, or mounted within specific grooves or slots, depending on the equipment’s design and the heating requirements.

Customizable Configurations: Notably, micro-cartridge heaters can be customized to meet specific application requirements. Parameters such as wattage, voltage, length, diameter, lead wire options, and connection types can be tailored to fit the equipment’s needs.

Micro-cartridge heaters assist applications in various test and measurement equipment, including thermal analyzers, environmental chambers, sample preparation instruments, sensors, and other devices that require precise and localized heating. Their compact size, high-temperature capability, uniform heating, and precise control make them a versatile heating solution for demanding test and measurement applications. Click here to learn more about Backer Hotwatt’s extensive line of custom-manufactured and stock micro-cartridge heaters, including low-watt density, high-watt density Superwatt heaters, and the revolutionary SunRod.



Tubular Heaters

Bioreactors and fermenters are crucial instruments used in test and measurement for cultivating and studying microorganisms, cells, or enzymes under controlled conditions. They provide an environment where biological reactions, such as fermentation or cell growth, can occur optimally for research, production, or analysis purposes. Tubular heaters are essential components in bioreactors and fermenters, ensuring precise and uniform heating of the growth medium. These heaters create and maintain the required temperature for microbial or cellular activity, promoting optimal growth rates, metabolic processes, and product yields. Reliable temperature control provided by tubular heaters is vital for achieving consistent and reproducible results in bioprocessing, pharmaceutical development, biotechnology research, and other related fields.



Tubular heaters are commonly used in test and measurement applications for their versatility, efficiency, and ability to provide controlled heating. Let’s take a closer look at several ways in which tubular heaters are utilized in such settings.



Temperature Calibration and Testing: Tubular heaters are often employed in temperature calibration setups where precise and controlled heating is crucial. These heaters can be designed to reach specific temperatures, allowing for accurate testing and calibration of temperature-sensitive instruments and sensors.

Environmental Chambers: Test environments often need to mimic specific conditions for various experiments or product testing. Tubular heaters are incorporated into environmental chambers to control the temperature inside these chambers, ensuring that the test conditions are consistent and reproducible.

Material Testing: Tubular heaters are used in material testing applications where samples need to be subjected to controlled temperatures. This is common in industries such as materials science, where the behavior of materials under different temperature conditions needs to be studied.

Thermal Cycling Tests: Tubular heaters are suitable for thermal cycling tests, where the temperature of a system is cycled between different set points. This type of testing is often performed to assess the reliability and performance of components under varying temperature conditions.

Electronic Component Testing: In the electronics industry, tubular heaters are used for testing the thermal performance of electronic components. This includes determining how well a component can dissipate heat and function within specified temperature ranges.

Fluid Heating for Analytical Instruments: Tubular heaters are integrated into analytical instruments that require precise temperature control of fluids. This includes applications in chromatography, spectrometry, and other analytical techniques where maintaining a consistent temperature is critical for accurate measurements.

Gas Sample Conditioning: In gas analysis and measurement equipment, tubular heaters are used to condition gas samples by maintaining them at a specific temperature. This ensures that the gas samples are in the desired state for accurate analysis.

Vaporization Processes: Tubular heaters play a role in vaporization processes, such as converting liquid samples into vapor for analysis. This is commonly seen in applications such as gas chromatography, where samples need to be vaporized before entering the analysis column.

Stability Testing: Tubular heaters play a role in vaporization processes, such as converting liquid samples into vapor for analysis. This is commonly seen in applications such as gas chromatography, where samples need to be vaporized before entering the analysis column.

Automated Test Equipment (ATE): In automated test equipment, tubular heaters are utilized for thermal testing of electronic components and systems. The controlled heating provided by tubular heaters helps simulate real-world operating conditions.

Overall, tubular heaters are valued in test and measurement applications for their ability to provide reliable and controlled heating, making them essential for a wide range of testing scenarios where temperature plays a critical role in obtaining accurate and repeatable results.

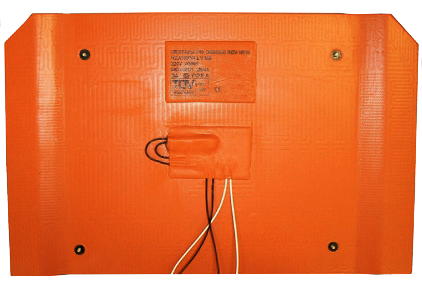

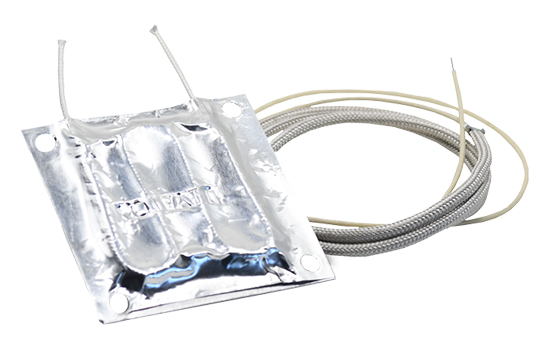

Foil Heaters

Chemistry analyzers are advanced instruments used in test and measurement applications to analyze various chemical substances in samples, such as blood, urine, or other bodily fluids. These chemical analyzers perform a wide range of tests to measure the levels of specific compounds, enzymes, electrolytes, and other parameters crucial for medical diagnosis, research, and monitoring. Foil heaters play a vital role in chemistry analyzers by providing precise and uniform heating to the reaction chambers or sample compartments. The consistent temperature maintained by foil heaters ensures optimal reaction conditions for accurate and reliable results in assays, immunoassays, enzymatic reactions, and other chemical analyses performed by the analyzer.



Foil heaters, which are thin, flexible, and efficient heating elements, find various applications in test and measurement scenarios due to their unique characteristics. Here are ways in which foil heaters are used in such applications:



Surface Heating for Test Chambers: Foil heaters are often used for surface heating in test chambers and enclosures. They can be affixed to the interior surfaces of these chambers to provide uniform and controlled heating. This is crucial for maintaining stable conditions during testing, especially in environmental testing where temperature control is essential.

Temperature Simulation and Calibration: They are employed to simulate specific temperature conditions for calibration purposes. Test and measurement equipment, such as temperature sensors or thermal imaging devices, can be calibrated using foil heaters to ensure accurate readings under known temperature conditions.

Flexible Integration in Complex Shapes: The flexibility of foil heaters allows them to be integrated into complex shapes and contours. This feature is advantageous in applications where traditional rigid heaters may be impractical. Foil heaters can conform to the shape of the test object, providing efficient and uniform heating.

Fast Response Time: Foil heaters typically have a fast response time, making them suitable for applications requiring rapid changes in temperature. This is beneficial in dynamic test scenarios or when the test equipment needs to reach and maintain specific temperature levels quickly.

Laboratory Equipment: Various laboratory equipment, including incubators, ovens, and thermal chambers rely on foil heaters. Their ability to provide precise and controlled heating makes them valuable for maintaining optimal conditions during experiments or tests.

Medical Testing and Diagnostics: They are employed in medical testing equipment that requires controlled heating, such as blood analyzers and diagnostic devices. The flexibility and efficiency of foil heaters make them suitable for integration into compact and specialized medical instruments.

Automated Test Systems: Foil heaters are used in automated test systems to provide controlled temperature environments for testing electronic components, sensors, or systems. The flexibility of foil heaters allows for easy integration into various testing setups.

Thermal Cycling Tests: They are often utilized in thermal cycling tests, where the temperature of a system is cycled between different levels. This type of testing is common in reliability testing to assess how components or materials perform under varying temperature conditions.

Semiconductor Testing: In semiconductor testing, foil heaters are employed to maintain consistent temperatures during various stages of the testing process. This is critical for ensuring accurate measurements and assessments of semiconductor devices.

Battery Testing: Foil heaters are used in battery testing applications to simulate real-world temperature conditions. This is important for evaluating the performance and safety of batteries under different thermal scenarios.

Their flexibility, efficiency, and ability to provide precise and controlled heating are why foil heaters are valued in test and measurement applications. Their versatility makes them suitable for a wide range of scenarios where maintaining specific temperature conditions is essential for accurate testing and measurement.

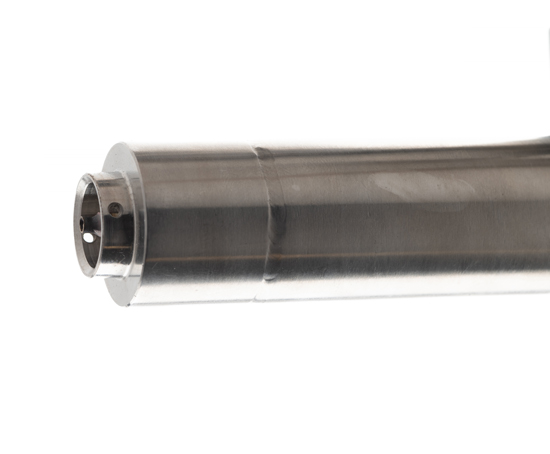

Pure Flow Air Heaters

Temperature cycling and environmental chambers play a vital role in test and measurement by simulating a diverse array of environmental conditions. These chambers are essential for evaluating the performance, reliability, and durability of materials, components, and products under controlled settings. These chambers can replicate various temperature profiles, humidity levels, and other environmental factors to assess how materials will behave under different conditions. Pure flow process air heaters are crucial components in these chambers, responsible for heating the circulating air or gases within the chamber to create precise and controlled environmental conditions. The heaters ensure uniform and consistent heating of the chamber, enabling reliable and repeatable testing conditions essential for research, development, and quality assurance processes.



Pure flow air process heaters, also known as forced air heaters or convection heaters, are used in various test and measurement applications where controlled air temperature is essential. Here are some ways in which pure flow air heaters are employed:

Temperature Calibration and Testing: Pure flow air heaters are utilized in temperature calibration setups where precise and controlled air temperature is necessary. These heaters can provide a stable and uniform air temperature environment for calibrating temperature-sensitive instruments and sensors.

Environmental Chambers: In test and measurement applications, environmental chambers are often used to simulate specific conditions. Pure flow air heaters are integrated into these chambers to control the air temperature, creating a stable and controlled environment for testing purposes.

Material Testing: Pure flow air heaters are used in material testing applications where samples need to be subjected to controlled air temperatures. This is common in industries such as materials science, where the response of materials to different temperature conditions needs to be studied.

Thermal Cycling Tests: These heaters play a role in thermal cycling tests where the air temperature is cycled between different set points. This type of testing is performed to assess the reliability and performance of components under varying thermal conditions.

Electronic Component Testing: In the electronics industry, pure flow air heaters are employed for testing the thermal performance of electronic components. This includes determining how well a component can dissipate heat and function within specified temperature ranges.

Automated Test Equipment (ATE): Pure flow air heaters are integrated into automated test equipment to provide controlled air temperatures for thermal testing of electronic components and systems. This is crucial for simulating real-world operating conditions.

Gas Sample Conditioning: In gas analysis and measurement equipment, pure flow air heaters are used to condition air samples by maintaining them at a specific temperature. This ensures that the air samples are in the desired state for accurate analysis.

Vaporization Processes: Pure flow air heaters are employed in vaporization processes, such as converting liquid samples into vapor for analysis. This is commonly seen in applications such as gas chromatography, where air temperature control is essential for proper sample vaporization.

Stability Testing: Stability testing of various products, especially in the pharmaceutical and food industries, requires controlled air temperature. Pure flow air heaters are used to create stable and controlled environments for testing the shelf life and performance of products under different temperature conditions.

Automotive Testing: In automotive testing, pure flow air heaters are utilized to simulate specific thermal conditions that a vehicle or its components may experience during operation. This includes testing the performance of various automotive systems under different temperature scenarios.

Pure flow air heaters are valued in test and measurement applications for their ability to provide reliable and controlled air temperature, making them essential for a wide range of testing scenarios where precise thermal conditions are crucial for obtaining accurate and repeatable results.

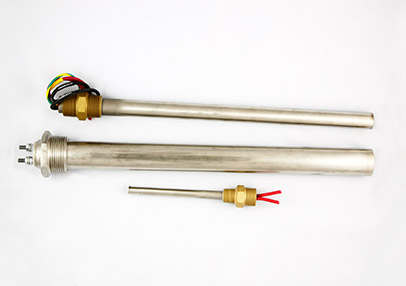

Immersion Heaters

Chromatographs (gas/ion) and mass spectrometers are sophisticated analytical instruments used in test and measurement for separating, identifying, and quantifying components in a sample mixture. Chromatography separates the components based on their interactions with the stationary phase, while mass spectrometry analyzes the mass-to-charge ratio of ions to identify compounds. Immersion heaters are integral to these instruments, particularly in the chromatography process, where they are used to heat the solvent or carrier gas. This heating ensures optimal vaporization and separation of components in the chromatographic column, leading to accurate and precise results in the analysis.



Immersion heaters are used in test and measurement applications for various reasons, primarily because of their ability to provide controlled and uniform heating in liquids and gases. Here are some key reasons why immersion heaters are employed in these settings:



Precise Temperature Control: Immersion heaters offer precise temperature control within liquid or gas environments. This is critical in test and measurement applications where maintaining a specific and stable temperature is essential for accurate and repeatable results.

Uniform Heating: They can achieve uniform heating throughout the medium in which they are immersed. This is crucial for applications where consistency in temperature distribution is necessary, such as in chemical reactions, material testing, or fluid dynamics studies.

Thermal Stability: Immersion heaters provide thermal stability to the test environment. The ability to maintain a constant temperature helps ensure that experiments or measurements are conducted under controlled conditions, minimizing variables that could affect the outcomes.

Simulating Real-World Conditions: In certain test scenarios, it is important to simulate real-world conditions. Immersion heaters allow for the controlled heating of liquids or gases, mimicking the temperature conditions that a system may experience in actual operation.

Material Testing: Immersion heaters are used in material testing applications, especially when studying the thermal properties of liquids or materials. They can be immersed in a substance to subject it to controlled temperature conditions and observe its behavior.

Environmental Chambers: When integrated into environmental chambers, immersion heaters control the temperature of the air or liquid within the chamber. This is common in test and measurement setups where specific environmental conditions need to be replicated for testing purposes.

Calibration of Sensors and Instruments: Immersion heaters are employed in the calibration of temperature sensors and instruments. By immersing these sensors in a controlled temperature medium, accurate calibration can be performed to ensure reliable and precise temperature measurements.

Chemical Reactions and Laboratory Processes: These heaters are utilized in laboratories for various chemical reactions and processes that require controlled heating. They are commonly found in setups for distillation, crystallization, and other chemical procedures.

Heat Transfer Studies: In studies related to heat transfer, immersion heaters are used to create specific temperature differentials. This allows researchers to investigate heat transfer rates and behaviors in different materials and environments.

Oil and Gas Industry Testing: Immersion heaters are employed in the oil and gas industry for testing equipment and components that operate in fluid environments. They help simulate and control the temperature conditions that such components may encounter during their operation.

Immersion heaters are chosen for test and measurement applications due to their ability to provide accurate and controlled heating in liquid and gas environments. Their versatility makes them valuable across a wide range of industries and scientific disciplines where maintaining specific temperature conditions is crucial for reliable experimentation and testing.

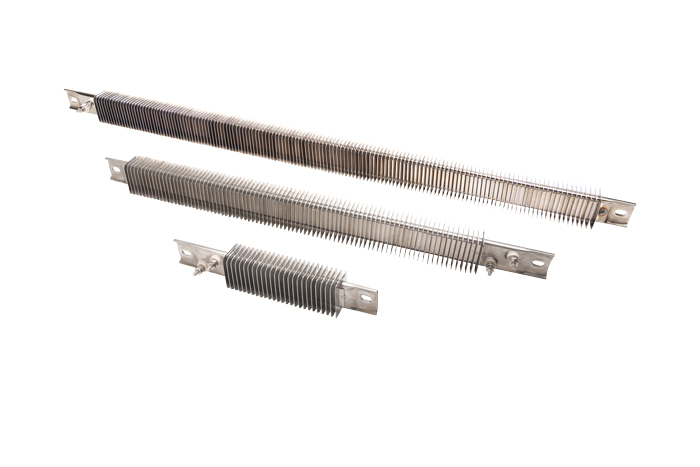

Strip Heaters

Differential scanning calorimeters (DSC) are instruments used in test and measurement to characterize the thermal properties of materials. They measure the heat flow into or out of a sample as it is subjected to controlled heating or cooling. Strip heaters are crucial components in DSC instruments, providing uniform and precise heating to the sample and reference pans. This controlled heating allows the DSC to accurately measure changes in heat capacity, enthalpy, phase transitions, and other thermal properties of materials, aiding in research, quality control, and material characterization processes.



Strip heaters are used in test and measurement applications for various reasons due to their versatility and ability to provide controlled and uniform surface heating. Here are some ways in which strip heaters are used in this context:

Temperature Control in Enclosures: Strip heaters are often employed to regulate the temperature inside enclosures or cabinets where sensitive test and measurement equipment is housed. They help prevent the formation of condensation, maintain consistent temperature levels, and protect equipment from temperature-related issues.

Instrumentation Calibration: In calibration processes for temperature-sensitive instruments and sensors, strip heaters are used to create a stable and controlled environment. This is crucial for ensuring the accuracy and reliability of measurements obtained from the instruments being calibrated.

Material Testing: Strip heaters are utilized in material testing applications where controlled surface heating is required. This is common in research and development laboratories, where materials are subjected to specific temperature conditions to study their thermal properties.

Heat Source for Custom Test Rigs: Engineers and researchers often design custom test rigs for specific experiments or measurements. Strip heaters can serve as a reliable and adjustable heat source in these setups, allowing for controlled and repeatable testing conditions.

Thermal Cycling Tests: Strip heaters are suitable for thermal cycling tests where the temperature of a system is cycled between different set points. This type of testing is performed to assess the performance and reliability of components under varying thermal conditions.

Surface Temperature Simulation: In applications where simulating surface temperatures is crucial, strip heaters can be used to replicate real-world conditions. This is particularly important in scenarios where precise control of the surface temperature is required for accurate testing.

Custom Test Platforms: Strip heaters can be integrated into custom-designed test platforms to create controlled temperature zones. This is useful when testing the thermal performance of devices or components in specific regions with different temperature requirements.

Aerospace and Automotive Testing: In aerospace and automotive industries, strip heaters are utilized for various testing applications. This includes evaluating the thermal performance of electronic components, testing materials under controlled temperature conditions, and ensuring that systems can operate reliably in diverse temperature environments.

Electronics Testing: Strip heaters are used in electronics testing setups to control the temperature of test chambers or specific components. This is important for assessing the impact of temperature variations on electronic devices and ensuring their reliability.

Environmental Simulation: These heaters are employed to simulate specific environmental conditions, such as extreme temperatures or temperature fluctuations, to assess how test equipment or components respond under different thermal scenarios.

Strip heaters find utility in test and measurement applications for their ability to provide controlled and uniform surface heating. Their versatility makes them suitable for a wide range of scenarios where maintaining specific temperature conditions is critical for accurate and repeatable testing and measurements.



Silicone Pad Heaters

Thermogravimetric analyzers (TGA) are instruments used in test and measurement to analyze the weight changes of a sample as it is subjected to controlled temperature ramps or isothermal conditions. They measure the mass loss or gain of a sample due to processes such as decomposition, oxidation, evaporation, or other reactions. Silicone pad heaters are essential components in TGA instruments, providing uniform and precise heating to the sample pan. This controlled heating allows the TGA to accurately measure the weight changes as a function of temperature, providing valuable insights into the thermal stability, composition, and behavior of materials in research, quality control, and material characterization applications.



Silicone pad heaters are used in test and measurement applications for various reasons, primarily due to their flexibility, ease of installation, and the ability to provide controlled and even heat distribution. Here are some ways in which silicone pad heaters are employed in test and measurement:



Surface Heating: Silicone pad heaters are designed to provide uniform surface heating. In test and measurement applications, this is often crucial for maintaining a consistent temperature across the surface of test equipment, components, or instruments.

Instrumentation Calibration: Silicone pad heaters are utilized in environments where temperature control is essential for accurate measurements and calibration of instruments. These heaters help create a stable and controlled temperature environment for calibration processes, ensuring precision in test equipment readings.

Preventing Condensation: In test chambers or enclosures where temperature fluctuations can lead to condensation, silicone pad heaters are used to prevent the formation of moisture. Keeping the equipment or components at a stable temperature helps avoid condensation-related issues during measurements.

Maintaining Constant Temperature: Test and measurement equipment often requires specific temperature conditions for reliable and repeatable results. Silicone pad heaters are employed to maintain a constant temperature within test setups, ensuring the stability of experimental conditions.

Custom Test Rigs: Engineers and researchers often design custom test rigs for specific experiments. Silicone pad heaters can be easily integrated into these setups due to their flexibility and low-profile design, providing controlled and adjustable heating to the test environment.

Thermal Cycling Tests: Silicone pad heaters are suitable for thermal cycling tests, where the temperature of a system is cycled between different set points. This type of testing is crucial for evaluating the performance and reliability of components under varying thermal conditions.

Materials Testing: In material testing applications, silicone pad heaters are employed to subject samples to controlled temperatures. Researchers can study how materials respond to different temperature conditions, enabling a better understanding of their thermal properties.

Environmental Simulation: Silicone pad heaters are used to simulate specific environmental conditions, such as temperature variations or extremes, to assess how test equipment or components respond under different thermal scenarios.

Vibration Testing: In some cases, silicone pad heaters are integrated into setups for vibration testing. Maintaining a stable temperature during vibration tests helps ensure that the thermal aspects of components are considered alongside mechanical responses.

Component Testing: Silicone pad heaters are applied directly to components or devices being tested to control their temperature during various experiments. This is particularly important in electronics testing, where temperature stability is critical for accurate assessments.

Silicone pad heaters, also known as flexible silicone etched foil and wire-wound heaters, are valued in test and measurement applications for their versatility, ease of use, and ability to provide controlled surface heating. Their flexible and conformable nature makes them suitable for a wide range of scenarios where maintaining specific temperature conditions is crucial for accurate testing and measurements.









INDUSTRIES THAT RELY ON TEST & MEASUREMENT EQUIPMENT

Test and measurement equipment is used in a wide range of industries for various purposes. We’re providing an overview of some industries that extensively rely on test and measurement equipment.

Medical and Healthcare: Test and measurement equipment is vital in the medical and healthcare industries for diagnostics, research, and patient monitoring. It includes instruments such as blood analyzers, medical imaging equipment (e.g., MRI, CT scanners), patient monitoring systems, and laboratory equipment for clinical testing.

Electronics and Electrical Engineering: The electronics industry relies heavily on test and measurement equipment for product development, quality control, and troubleshooting. This includes instruments such as oscilloscopes, multimeters, signal generators, spectrum analyzers, and logic analyzers.

Automotive and Transportation: The automotive industry uses test and measurement equipment for research, development, and manufacturing processes. It includes equipment for engine testing, emissions analysis, electrical system diagnostics, vehicle dynamics testing, crash testing, and more.

Aerospace and Defense: The aerospace and defense industries require precise and rigorous testing to ensure the safety and reliability of aircraft, spacecraft, and defense systems. Test and measurement equipment is used for structural testing, avionics testing, environmental testing, vibration testing, and electromagnetic compatibility (EMC) testing.

Telecommunications: Test and measurement equipment plays a crucial role in the telecommunications industry for network installation, maintenance, and performance optimization. It includes equipment for signal analysis, network analyzers, spectrum analyzers, optical time-domain reflectometers (OTDRs), and cable testers.

Energy and Power Systems: The energy sector utilizes test and measurement equipment for monitoring and maintaining power systems, renewable energy sources, and electrical grids. This includes equipment for power quality analysis, energy metering, insulation testing, thermal imaging, and fault diagnosis.

Manufacturing and Quality Assurance: Test and measurement equipment is extensively used in manufacturing industries for quality control, process optimization, and compliance testing. This includes equipment for dimensional measurements, material testing, hardness testing, torque testing, and environmental testing.

Research and Development: Test and measurement equipment is employed in various research fields, including physics, chemistry, materials science, and biology. Researchers rely on specialized equipment for precise measurements, data acquisition, and analysis to advance scientific knowledge and develop new technologies.

These are just a few examples of the industries that rely on test and measurement equipment. The need for accurate measurements, quality control, and performance evaluation spans across many sectors, making test and measurement equipment essential in a wide range of applications, including specific application in scientific instruments for laboratory and analytical applications, as well as for explosive detections systems.





SPECIFIC APPLICATIONS IN EACH INDUSTRY

Medical and Healthcare

In the medical and healthcare industry, test and measurement equipment plays a crucial role in diagnostics, research, and patient care. While heaters are not as commonly used in this domain compared to other industries, there are specific applications where heaters are utilized. Along with medical imaging, heaters are used in the following applications.



Laboratory Equipment: Medical laboratories often employ various test and measurement instruments that may incorporate heaters. For instance, incubators are used to provide a controlled temperature environment for culturing cells, growing bacteria, or conducting biochemical reactions. These incubators typically contain heating elements to maintain the desired temperature for optimal growth conditions.

Thermal Therapy: Heaters are used in certain medical treatments that involve thermal therapy. This includes techniques such as hyperthermia, where targeted heating of tissues is used to treat conditions like such as cancer. Specialized equipment utilizing heaters, such as hyperthermia machines or thermal ablation devices, are employed for precise temperature control and delivery of therapeutic heat to specific areas of the body.

Applications include foil heaters that are used for patient warming, along with cartridge heaters relied on for ablation, as discussed in more detail on this medical applications resource page.



Laboratory Sample Preparation: Heaters are commonly used in medical and healthcare laboratories for sample preparation. Equipment such as hot plates, heating mantles, or heating blocks are employed to heat solutions, reagents, or samples for various laboratory procedures, such as sample digestion, chemical reactions, or sample drying.

Foil heaters and silicone pad heaters for hot plates and heated baths are most commonly used for these applications.



Surgical Instruments and Devices: In some surgical procedures, heaters are incorporated into specialized instruments or devices to provide localized heating. For example, in electrosurgical devices, heating elements are used to generate controlled heat for tissue cauterization, cutting, or coagulation during surgical procedures.



One application that requires the special features of Superwatt high watt density cartridge heaters is tissue cauterization.


It’s important to note that in the medical and healthcare industry, safety and precision are of utmost importance. Therefore, the design and implementation of heaters for the entire scientific instruments market, and specifically for medical applications, adhere to strict regulations and standards to ensure patient safety, accurate temperature control, and reliable performance.


While the use of heaters may not be as widespread in medical and healthcare equipment compared to other industries, they do find specific applications where precise and controlled heating is necessary for diagnostics, treatment, laboratory procedures, or surgical interventions.





Electronics and Electrical Engineering


In the field of electronics and electrical engineering, test and measurement equipment is fundamental for research, development, production, and maintenance processes. While heaters may not be directly associated with all electronic test and measurement equipment, there are specific applications within this field where heaters are utilized; they include thermal management and temperature compensation and calibration. We discuss other applications in more detail below.



Environmental Testing: Heaters play a crucial role in environmental testing of electronic components, devices, and systems. Environmental chambers, also known as temperature chambers, are used to simulate extreme temperature conditions to assess the performance, reliability, and behavior of electronic equipment under different thermal environments. These chambers typically incorporate heaters to raise the temperature within the chamber to the desired level.

Finned tubular and finned strip heaters are relied on for environmental chambers.

Soldering and Rework: In electronics manufacturing and repair processes, heaters are extensively used for soldering and rework operations. Soldering stations and rework systems employ heaters to melt solder and heat electronic components or circuit boards for soldering, desoldering, or component removal/replacement. These heaters are typically integrated into soldering irons, hot air stations, or specialized rework systems.



Soldering irons employ the precision of cartridge heaters.



Thermal Analysis and Characterization: Test and measurement equipment used for thermal analysis and characterization of electronic components, materials, or systems often utilize heaters. Techniques such as thermal conductivity measurements, thermal impedance characterization, or coefficient of thermal expansion analysis require controlled heating and precise temperature control. Instruments such as thermal analyzers, thermal imaging cameras, or specialized thermal test setups may incorporate heaters to generate controlled heating profiles.

Micro-cartridge heaters are typically used for sample heating in material testing and characterization equipment.



Reliability Testing: Heaters are utilized in reliability testing of electronic components and systems. Accelerated life testing or aging tests involve subjecting electronic devices to elevated temperatures for extended periods to simulate long-term operation and assess reliability. Heaters are employed in environmental chambers or ovens to provide the required temperature conditions during these tests.

Micro-cartridge heaters are used in reliability testing for in-circuit (IC) test equipment.



It’s important to note that the specific use of heaters in electronics and electrical engineering depends on the particular application, equipment, and test requirements. Safety, accuracy, and precise temperature control are key considerations when utilizing heaters in test and measurement equipment within this field.





Aerospace and Defense

In the aerospace and defense industries, test and measurement equipment is critical for ensuring the safety, reliability, and performance of aircraft, spacecraft, and defense systems. Heaters play a significant role in various test and measurement applications within this field. We discuss two examples below.



Avionics Testing: Avionics systems, which include electronic equipment used in aircraft, require rigorous testing to ensure their reliability and compliance with safety standards. Test and measurement equipment, such as avionics test sets, is used to evaluate the performance, functionality, and communication protocols of avionics systems. Heaters can be incorporated into these test sets to simulate the thermal conditions that avionics systems may encounter during flight or specific operating scenarios.

High-temperature air process heaters are utilized for simulation testing.



Material Testing and Qualification: Aerospace and defense industries require extensive material testing and qualification to ensure the performance and integrity of structural components. Heaters are employed in thermal analysis instruments or setups to assess material properties, such as thermal conductivity, thermal expansion, or heat resistance. These tests help in selecting suitable materials and validating their performance under extreme temperature conditions.

The heaters of choice for sample heating in material testing and characterization equipment are micro-cartridge heaters.



Other areas in the aerospace and defense industries that use heaters include thermal measurement, environmental, vibration and shock, and electrical testing. Heaters in test and measurement equipment are also utilized for other purposes, including environmental testing, thermal management, vibration and shock testing, and electrical testing. They contribute to the comprehensive evaluation, validation, and optimization of systems and components for reliable and safe operation in challenging aerospace and defense environments.





Automotive and Transportation

The automotive and transportation industry extensively employs test and measurement equipment to ensure the safety, reliability, and performance of vehicles and transportation systems. Heaters are utilized in various applications within this industry, including climate control system testing, battery testing, component testing, environmental testing, and tire testing. For our purposes here, we discuss engine testing.



Engine Testing: Heaters play a crucial role in engine testing to simulate and control engine operating temperatures. Engine test cells or dynamometers incorporate heaters to provide controlled heating of engine components, engine fluids (e.g., coolant), or intake air to replicate real-world operating conditions. This allows for performance evaluation, emissions testing, durability assessments, and accelerated life tests.

Engine testing encompasses a variety of elements and parameters. As such, there are various heaters that work well for each variable, including tubular heaters, immersion heaters, and air process heaters for the many types of components and engine fluid testing requirements.


Heaters in test and measurement equipment within the automotive and transportation industry contribute to the comprehensive evaluation, optimization, and validation of vehicles, components, and systems. They enable the simulation of real-world operating conditions, allowing for accurate performance assessment, efficiency testing, durability analysis, and compliance with regulatory standards.











ADDITIONAL INDUSTRIES USING HEATERS FOR TEST & MEASUREMENT


Research and Development (R&D)


Research and development (R&D) encompasses a wide range of disciplines and industries, where test and measurement equipment is critical for advancing scientific knowledge, developing new technologies, and improving existing products or processes. In R&D, heaters are employed to create controlled thermal environments, simulate real-world conditions, enable precise temperature control, and facilitate experiments and measurements across various scientific and technological domains. They are crucial tools for advancing knowledge, innovation, and the development of new technologies and products.



A list of applications includes:

  • Material Science
  • Chemical Reactions
  • Pharmaceutical Research
  • Energy Research
  • Biological and Biomedical Research
  • Electrical and Electronic Component Development
  • Thermal Management and Cooling



Telecommunications

In the field of telecommunications, test and measurement equipment is vital for network installation, maintenance, and optimization. While heaters are not extensively used in telecommunications test and measurement, it’s important to note that while heaters may not be a primary component of telecommunications test and measurement equipment, their inclusion in certain applications is driven by the need to replicate real-world conditions, ensure proper functionality of telecommunications infrastructure, and assess the performance and reliability of equipment in challenging thermal environments.


A list of applications includes:



  • Fiber Optic Testing
  • Environmental Testing
  • RF and Microwave Testing
  • Base Station Testing
  • Climatic Chamber Testing



Manufacturing and Quality Assurance


In the manufacturing and quality assurance processes, test and measurement equipment is crucial for ensuring product quality, performance, and compliance with standards. While heaters are not directly associated with all manufacturing and quality assurance applications, there are specific instances where heaters are used. Some specific applications for heaters include the facilitation of temperature control, simulation of environmental conditions, to conduct thermal testing, or perform thermal treatments. Their usage is driven by the need for precise temperature regulation, thermal performance evaluation, and adherence to quality standards throughout the manufacturing and quality assurance processes.


A list of applications includes:



  • Material Testing
  • Thermal Shock Testing
  • Calibration and Verification
  • Component Testing
  • Heat Treatment
  • Soldering and Assembly



Energy and Power Systems


Heaters are employed in specific applications within energy and power systems for accurate temperature control, thermal simulation, performance evaluation, and reliability assessment of various energy technologies. Their usage contributes to the advancement and optimization of energy technologies, ensuring efficient and reliable operation of energy and power systems

.
A list of applications includes:



  • Battery Testing
  • Fuel Cell Testing
  • Solar Panel Testing
  • Power Electronics Testing
  • Thermal Management
  • Energy Storage Testing










WHY BACKER HOTWATT


It’s not an overstatement to say that projects, product, and companies depend on the work we do manufacturing heaters for OEMs in test and measurement phases of product analysis or product and process regulation and maintenance. Whatever your needs are under the larger umbrella of scientific instruments, you can be assured that Backer Hotwatt engineers will work in close collaboration with your team to meet all performance, physical, and regulatory requirements to ensure reliable outcomes. Backer Hotwatt solves challenging problems with unique solutions that our competitors won’t or can’t provide. We’re here to help you design and manufacture the best heater for your precise needs.


Established in 1952, Backer Hotwatt, Inc. has been a trusted source of superior quality heating elements for OEMs in the medical, industrial, semiconductor, commercial, packaging, instrumentation, aviation, transportation, refrigeration/air conditioning, and military fields for almost 70 years. For whatever your heating needs are, we excel in supporting test and measurement applications. We’re here to help you design and manufacture the best heater for your crucial heat control requirements.


How can we help you with your next heating project? Contact an engineer today to set up an exploration consultation. We look forward to helping you soon.
