INSULATED HEATING TAPE AND GLASROPE® HEATERS IN STOCK

Description

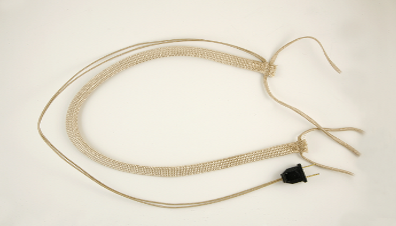

Insulated Tape heaters, are high temperature, flexible electric heating elements in tape form. Through a new design, they offer the convenience of leads on the same end.Type SF3)

Specifications

High Temperature Capability: 1400°F Yarn Insulation
Low Watt Density Design: 13 Watts/Inch²
Dual, Knitted, Serpentine Construction: Minimized Expansion, Vibration and Thermal
Stress, Longer Life, Flexible
Multi-Strand Wire Element: High Temperature and Flexible
Heavy Braided Outer Cover: Heavy Yarn
2 ft. High Temperature Leads with Plug

Features

Heating Tape Basic Construction: Heating tape construction begins by first: double braiding high temperature yarn over multiple strands of fine resistance wire, then second: knitting the assemble into a tight serpentine configuration, forming a flat tape. Insulated tapes feature the basic element construction with the exception that two elements are knitted side by side as shown.This arrangement allows the two elements to be connected in series on one end and leads to exit from the other. The assembly is protected by a heavy braided cover.

Catalog No.	Metric (cm)	U.S.	Watts	Volts
AWH-051-02OD	1.3 x 60	1/2″ x 2′	156	120
AWH-051-04OD	1.3 x 120	1/2″ x 4′	312	120
AWH-051-06OD	1.3 x 180	1/2″ x 6′	468	120
AWH-051-08OD	1.3 x 240	1/2″ x 8′	624	120

GLASROPE® HEATERS

Description

U.L. Recognized – No. E56973
C.S.A. Certified – No. 016386-0-000

Applications

Pipes, Tubes and other similar apparatus where spot or particular locations need to be warmed.Odd shapes such as: Laboratory beakers, valves and piping appliances.
