Air Process Heaters: Tee Type – 3/8″ diameter

(Horizontal Use Only)

3/8″

1/2″

5/8″

3/4″

1 1/4″

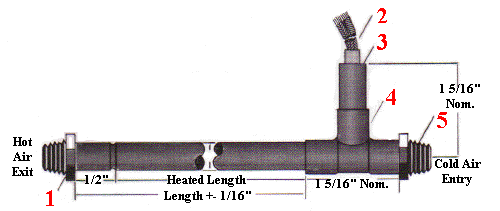

Construction
Construction 3/8
  1. Optional stainless steel bushing – 1/4″ NPT male fitting.
  2. Fiberglass insulated leads.
  3. Epoxy seal.
  4. Copper tee.
  5. Optional brass bushing – 1/4″ NPT male fitting.
Specifications

Maximum Amperage: 6

Cross Sectional Flow Area: .03 sq. in.

Maximum CFM: 8

CFM

Max.Watts/linear in.
of heated length

1

60

2

60

4

100

6

150

8

200

Pressure Rating: 80 psig

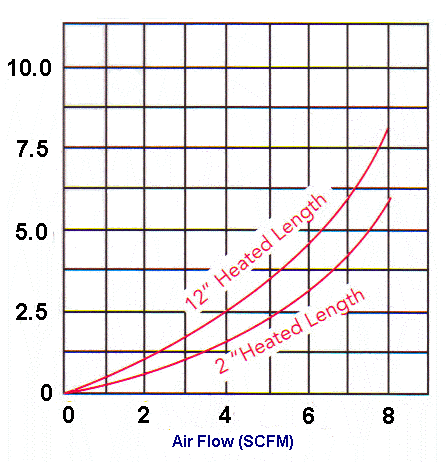

Specifications Pressure Drop vs. Air Flow

Pressure Drop (psig)

Air Flow Graph
Sizes

Diameter: 3/8"

Length

Heated Length

Cat. No.w/o fittings

Cat. No. w/male
NPT fitings

2″

1 1/2″

AH37-2

AH37-2-MF

3″

2 1/2″

AH37-3

AH37-3-MF

4″

3 1/2″

AH37-4

AH37-4-MF

5″

4 1/2″

AH37-5

AH37-5-MF

6″

5 1/2″

AH37-6

AH37-6-MF

7″

6 1/2″

AH37-7

AH37-7-MF

8″

7 1/2″

AH37-8

AH37-8-MF

9″

8 1/2″

AH37-9

AH37-9-MF

10″

9 1/2″

AH37-10

AH37-10-MF

Red catalog number denotes stock item. See stock section for specific ratings.

Special Features Available

MF: 1/4″ NPT male fittings (add MF to catalog number).
HF: Hose adaptor on entry end only (add HF to catalog number and specify I.D. of hose).
